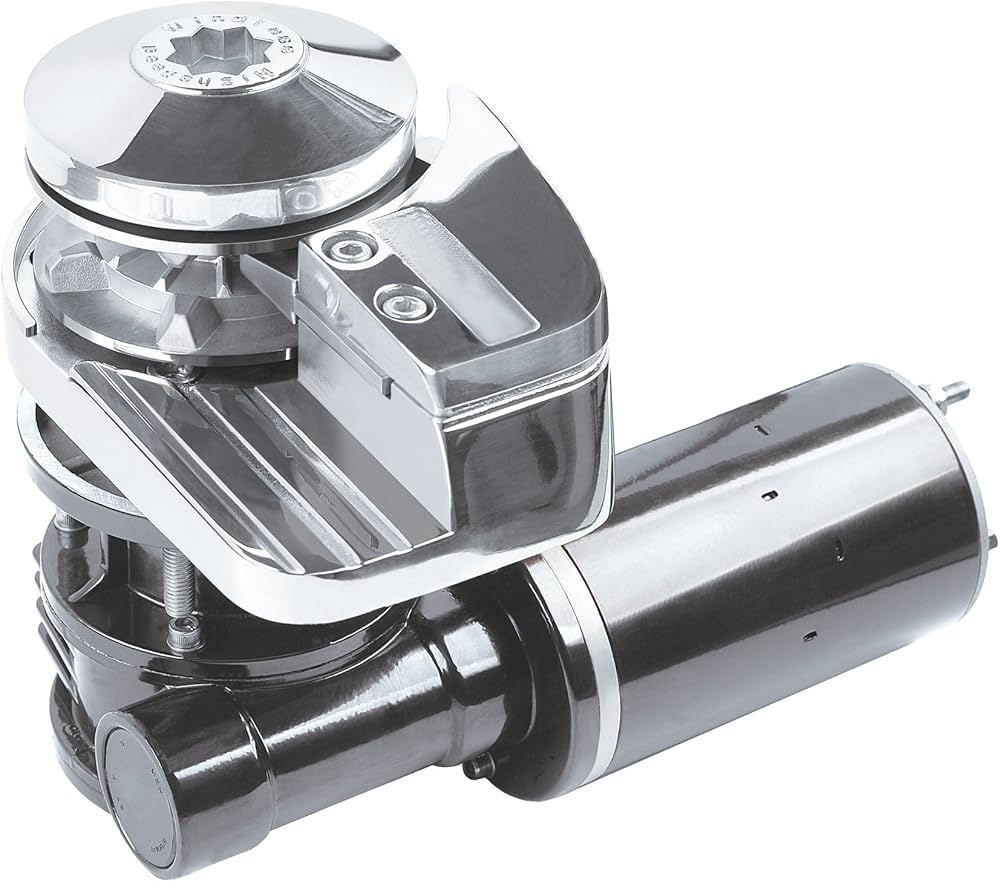

Windlass: Electric Winch 8mm
Windlass: Electric Winch 8mm
Regular price
Rs 75,000.00 MUR
Regular price
Sale price
Rs 75,000.00 MUR
Unit price
per
SUITABLE FOR BOATS 32 FT TO 45 FT
With parts above the deck made of high polished stainless steel 316. Powerful and compact windlass made specially for the rigid conditions of the sea. Suitable for the boat with adequate space under-neath deck and with deck thickness less that 50mm(2). With motor/gear underneath deck offers this model a very smooth and silent operation. Easy to vertically install, adjustable clutch, works with chain only or rope/chain combination
Highspeed facility on all windlass models
Complete packages for pefect matching/performance
| Motor(w) |
1000
|
| Voltage (v) |
12
|
| Current draw(A) |
55
|
| Max. working load (kgs/lbs) |
250/550
|
| Max. power pull (kgs/lbs) |
750/1650
|
| Drop speed chain(m/min)/(ft/min) |
40/131
|
| Gypsy options |
|
| Alt.1-Chain/Rope (DIN 766- HT G4) |
7mm-1/4"
|
| Alt. 2-Chain/Rope (DIN 766- HT G4) |
8mm-5/16"
|
| Rope (mm4nches) Alt.1 |
12-1/2"
|
| Rope (mm-Inches) Alt.2 |
14-9/16
|
| Weight(kgs/lbs) |
19/42
|
